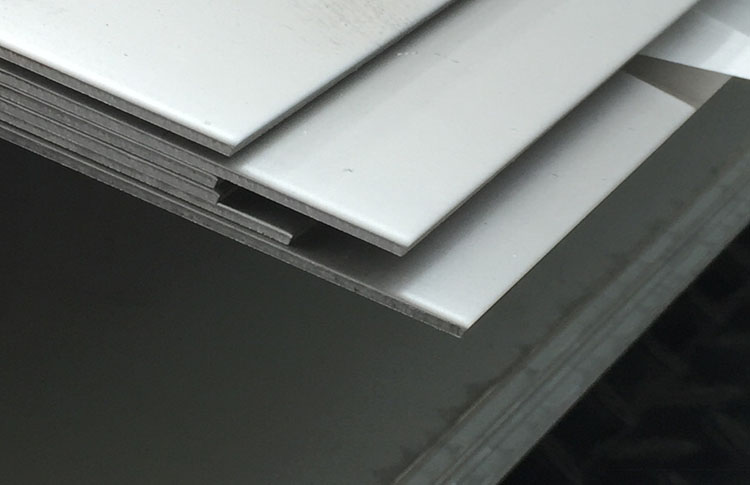

410/HT Stainless Steel Sheet

Chemical Composition (%) of 410/HT Stainless Steel Plate
C Mn Si P S Cr Ni
0.15 1.00 1.00 0.04 0.03 11.5-13.5 0.50
Mechanical Properties of 410/HT Stainless Steel Plate
Tensile Strength MPa (min) Yield Strength 0.2% MPa(min) Elongation (% in 50mm) min Hardness (Rockwell B) MAX
450 205 20 96
Physical Properties of 410/HT Stainless Steel Plate
Density
lbm/in3		 Thermal Conductivity
(BTU/h ft. °F)		 Electrical
Resistivity
(in x 10-6)		 Modulus of
Elasticity
(psi x 106		 Coefficient of
Thermal Expansion
(in/in)/
°F x 10-6		 Specific Heat
(BTU/lb/
°F)		 Melting
Range
(°F)
at 68°F: 0.280 187 at 212°F 23.7 at 68°F 29 6.0 at 32 – 212°F 0.11 at 68°F to 212°F 2700 to 2790

Alloy 410HT is the basic, general purpose,  heat treated version of Type 410. It is a martensitic type, used for general purpose, where corrosion is not severe. Alloy 410 contains a minimum of 11.5% chromium which is just sufficient enough to demonstrate corrosion resistance properties in mild atmospheres, steam, and many mild chemical environments.

Applications requiring moderate corrosion resistance and high mechanical properties are ideal for Alloy 410HT. Examples of applications that frequently used Alloy 410HT include:

  • Cutlery
  • Steam and gas turbine blades
  • Kitchen utensils
  • Bolts, nuts, screws
  • Pump and valve parts and shafts
  • Mine ladder rugs
  • Dental and surgical instruments
  • Nozzles
  • Hardened steel balls and seats for oil well pumps
If you are interested in other Stainless Steel Plates/Sheets, please click 302, 303, 304, 304L, 304H, 309, 309S, 310, 310S, 310H, 316, 316L, 317/317L, 317LMN, 321, 321H, 330, 347, 347H, 904L, 403, 405, 409, 410, 410S, 410/HT, 416, 416HT, 420, 422, 430, 440C, Duplex 2205, Duplex 2304, Duplex 2507.
