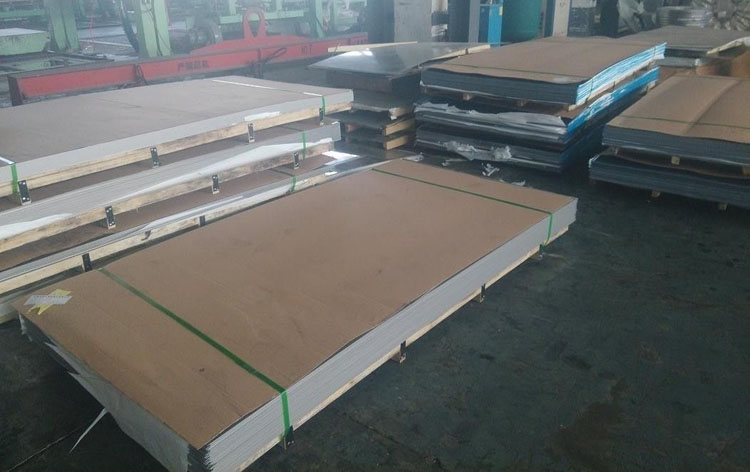

310S stainless steel plate

310S Stainless Steel

Chemical Composition (%) of 310S Stainless Steel Plate
% Cr Ni C Si Mn P S Mo Cu
310S 24.0-26.0 19.0-22.0 0.08 1.00 2.0 0.045 0.030 0.75 0.5
Mechanical Properties of 310S Stainless Steel Plate
Tensile Strengtd ksi (min.) Yield Strength 0.2% Offset ksi (min.) Elongation - % in 50 mm (min.) Hardness (Brinell) MAX Hardness (Rockwell B) MAX
75 30 40 217 95
Physical Properties of 310S Stainless Steel Plate
Density lb/inᶟ 0.285
Density g/cmᶟ 7.89
Melting Range 2470-2555°F/1354 – 1402 °C
Thermal Conductivity at 212°F (100°C) 8.0 BTU/hr/ft²/ft/°F
Thermal Conductivity at 212°F (100°C) 10.8 W/m-°K
Electrical Resistivity 30.7 Microhm-in at 68°C
Electrical Resistivity 78 Microhm-cm at 20°C

310S stainless steel sheets is similar to stainless steel 310 apart from a lower content of carbon that reduces carbide precipitation and enhances weldability. The soaring nickel and chromium contents of SS 310S plates offer similar corrosion resistance, higher resistance to oxidation and the holding of a superior portion of room temp potency than the usual austenitic steel such as SS 304. 310S plate is utilized for easiness of fabrication.

Corrosion Resistance of 310S Stainless Steel Plate:

  • Provides excellent corrosion resistance
  • High chromium content allows for good aqueous corrosion resistance
  • Excellent resistance at normal temperatures and also has good resistance to oxidizing and carburizing atmospheres

Heat Resistance of 310S Stainless Steel Plate:

  • Good resistance to oxidation in intermittent service in air at temperatures up to 1040°C and 1150°C in continuous service.
  • Good resistance to thermal fatigue and cyclic heating.
  • Widely used where sulphur dioxide gas is encountered at elevated temperatures.
  • Continuous use in 425-860°C range not recommended due to carbide precipitation, if subsequent aqueous corrosion resistance is needed
  • Generally used at temperatures starting from about 800 or 900°C – above the temperatures at which 304H and 321 are effective.
