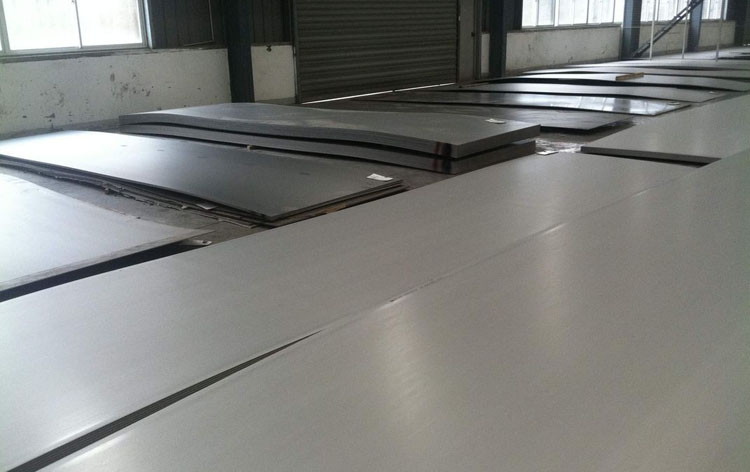

2507 Duplex Stainless Steel Supplier

Chemical Composition (%) of 2507 Duplex Stainless Steel Plate
C Cr Ni Mo N Others
0.020 25 7 4.0 .27 S=0.001
Mechanical Properties of 2507 Duplex Stainless Steel Plate
Ultimate Tensile Strength, ksi 116 min.
0.2% Offset Yield Strength 0.2%, ksi 80 min.
0.1% Offset Yield Strength 0.2%, ksi 91 min.
Elongation in 2 inches, % 15 min.
Hardness Rockwell C 32 max.
Impact Energy, ft.-lbs. 74 min.
Physical Properties of 2507 Duplex Stainless Steel Plate
Density lb/in3 0.28
Modulus of Elasticity psi x 106 29
Coefficient of Thermal Expansion 68-212°F/°F x10-6/°F 7.2
Thermal Conductivity Btu/h ft °F 8.7
Heat Capacity Btu/lb/°F 0.12
Electrical Resistivity W-in x 10-6 31.5

Alloy 2507 (UNS S32750) is a super duplex stainless steel with 25% chromium, 4% molybdenum, and 7% nickel designed for demanding applications which require exceptional strength and corrosion resistance, such as chemical process, petrochemical, and seawater equipment. The steel has excellent resistance to chloride stress corrosion cracking, high thermal conductivity, and a low coefficient of thermal expansion. The high chromium, molybdenum, and nitrogen levels provide excellent resistance to pitting, crevice, and general corrosion.

2507 Duplex Stainless Steel Applications:

  • Oil and gas industry equipment
  • Offshore platforms, heat exchangers, process and service water systems, fire-fighting systems, injection and ballast water systems
  • Chemical process industries, heat exchangers, vessels, and piping
  • Desalination plants, high pressure RO-plant and seawater piping
  • Mechanical and structural components, high strength, corrosion-resistant parts
  • Power industry FGD systems, utility and industrial scrubber systems, absorber towers, ducting, and piping

Equivalent Standards of 2507 Duplex Stainless Steel:

  • ASTM/ASME ………. A240 – UNS S32750
  • EURONORM………… 1.4410 – X2 Cr Ni MoN 25.7.4
  • AFNOR……………….. Z3 CN 25.06 Az

If you are interested in other Stainless Steel Plates/Sheets, please click 302, 303, 304, 304L, 304H, 309, 309S, 310, 310S, 310H, 316, 316L, 317/317L, 317LMN, 321, 321H, 330, 347, 347H, 904L, 403, 405, 409, 410, 410S, 410/HT, 416, 416HT, 420, 422, 430, 440C, Duplex 2205, Duplex 2304, Duplex 2507.
