P335N steel plate and equivalent grades

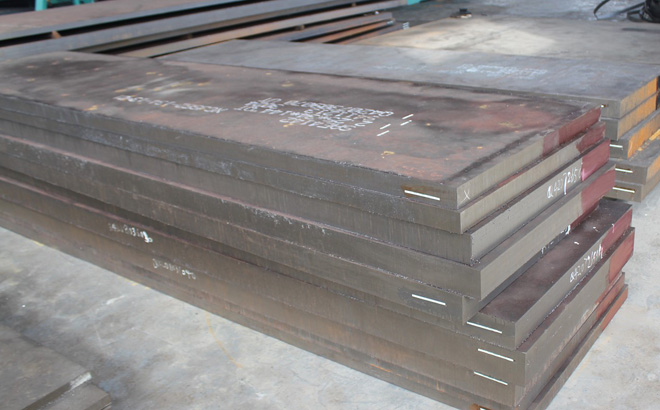

P335N Pressure Vessel Steel Plate for Sale

P335N pressure vessel steel plate owned the minimum yield point at 355 Mpa for the thickness below 16mm. ANSON is able to offer P355N steel plate thickness between 6mm-300mm for guarantee the steel property in chemical composition and mechanical property. For the delivery time of 1000 tons order p355n steel plates,our general rolling time shall be within 30 days.

P335N Chemical Properties:

Grade	C %	Mn %	S %	N %	Cu %	Nb %	Ti %	Si %	P %	AL %	Cr %	Mo %	Ni %	Vi %
P 355 N	0.10-0.22	0.10-1.70	0.015	0.012	0.30	0.020	0.03	0.60	0.025	0.020	0.30	0.08	0.30	0.02

EN 10028-3 P 355 N steel is used worldwide by fabricators of welded pressure vessels, industrial boilers and heat ex-changers and is engineered to work well in elevated temperature service.

P335N Mechanical Properties:

Grade	Type	Thickness mm	Yield strength Mpa(min)	Tensile Strength MPa	Elongation % (min)	Impact Energy (KVJ) (min)
Grade	Type	Thickness mm	Yield strength Mpa(min)	Tensile Strength MPa	Elongation % (min)	-20°	0°	+20
P 355 N	Normalized	t≤16	355	510-650	20	27	34	40
		16＜t≤40	345	510-650	20	27	34	40
		40＜t≤60	335	460-580	20	27	34	40
		60＜t≤100	315	490-630	20	27	34	40
		100＜t≤150	295	480-630	20	27	34	40
		150＜t≤250	280	470-630	20	27	34	40

ANSON is committed to steel processing and export. We have the most comprehensive service. One package service will be offered, including cutting, welding, drilling, shot blast cleaning, painting, galvanized, etc.

EN 10028-3 P 355 N equivalent material
Europe		Germany DIN			Japan JIS G		USA
EN10028-2	EU 113	17135	17165	17102	3115	3103	ASTM
P355 GH	FeE355 KG,KW,KT	A St 52	19 Mn 8	St E355	SPV 355	SB480	A537 class 1
